11kV Cable Relocation and Pit Design, Brookvale

11kV Cable Relocation and Pit Design, Brookvale

Guest User

DESIGN SCOPE:

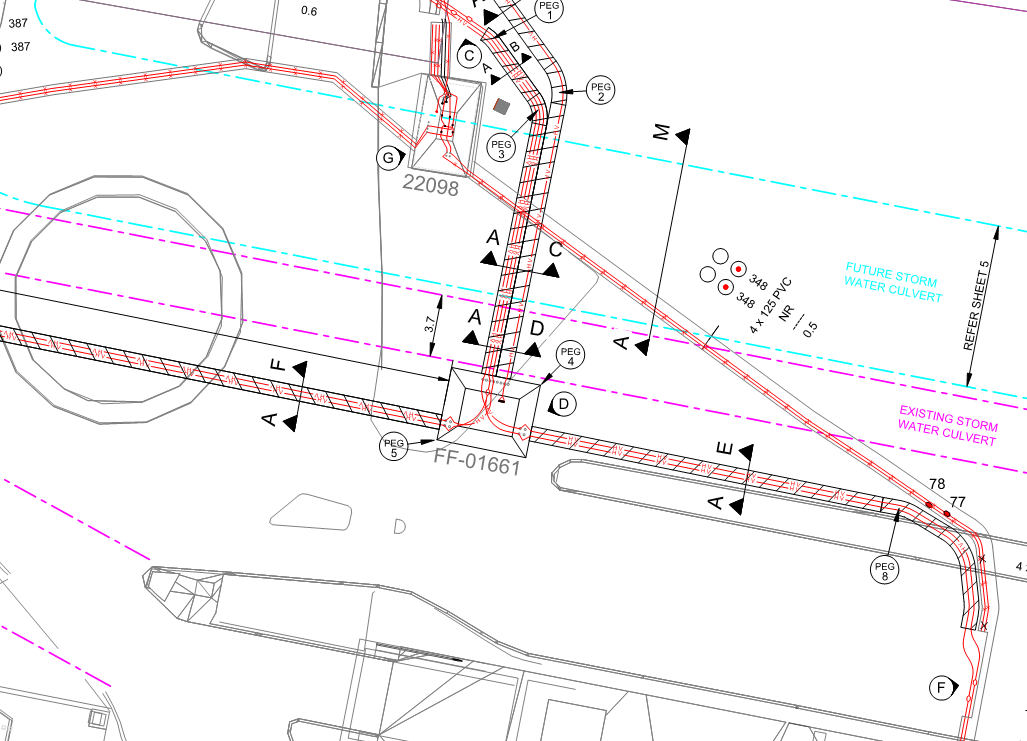

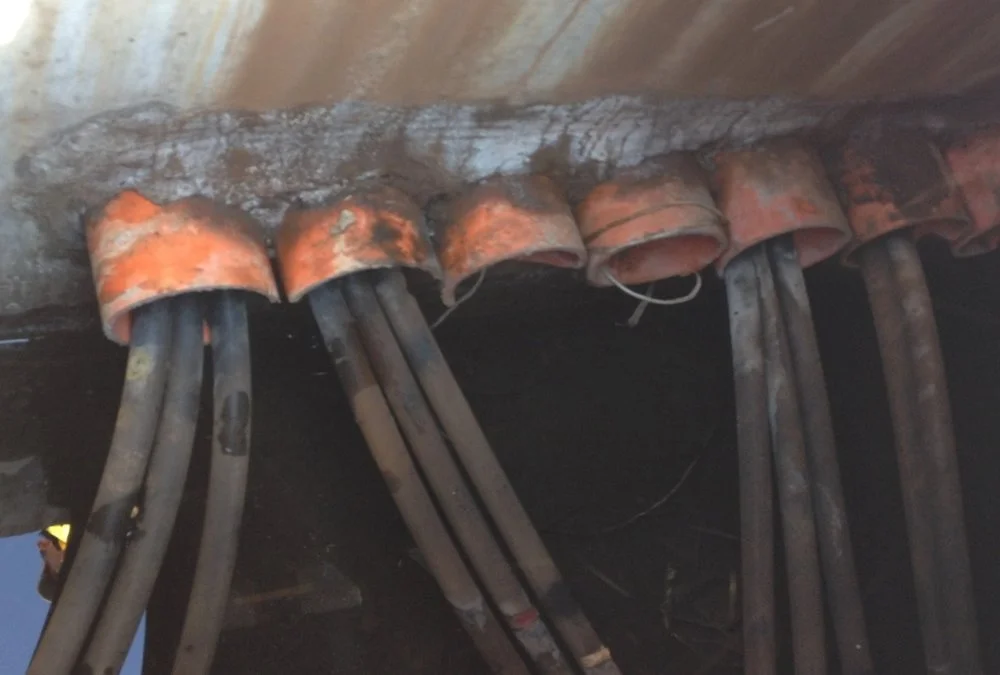

  • Relocation of 3 x 11kV cable in Warringah Mall car park,
  • Relocation of a major 11kV pit,

HIGHLIGHTS:

  • Custom 11kV pit design and approval,
  • Designing a concrete encased steel beam reinforced 11kV duct bank that could be excavated in the future while energised to allow installation of a 10m wide stormwater culvert,
  • Designing protection of shallow proposed and existing 11kV cables, including the use of steel plates, TSB encasement and concrete encasement.
