11kV Cable Cross-Feeder Tie, Flinders

11kV Cable Cross-Feeder Tie, Flinders

Guest User

DESIGN SCOPE:

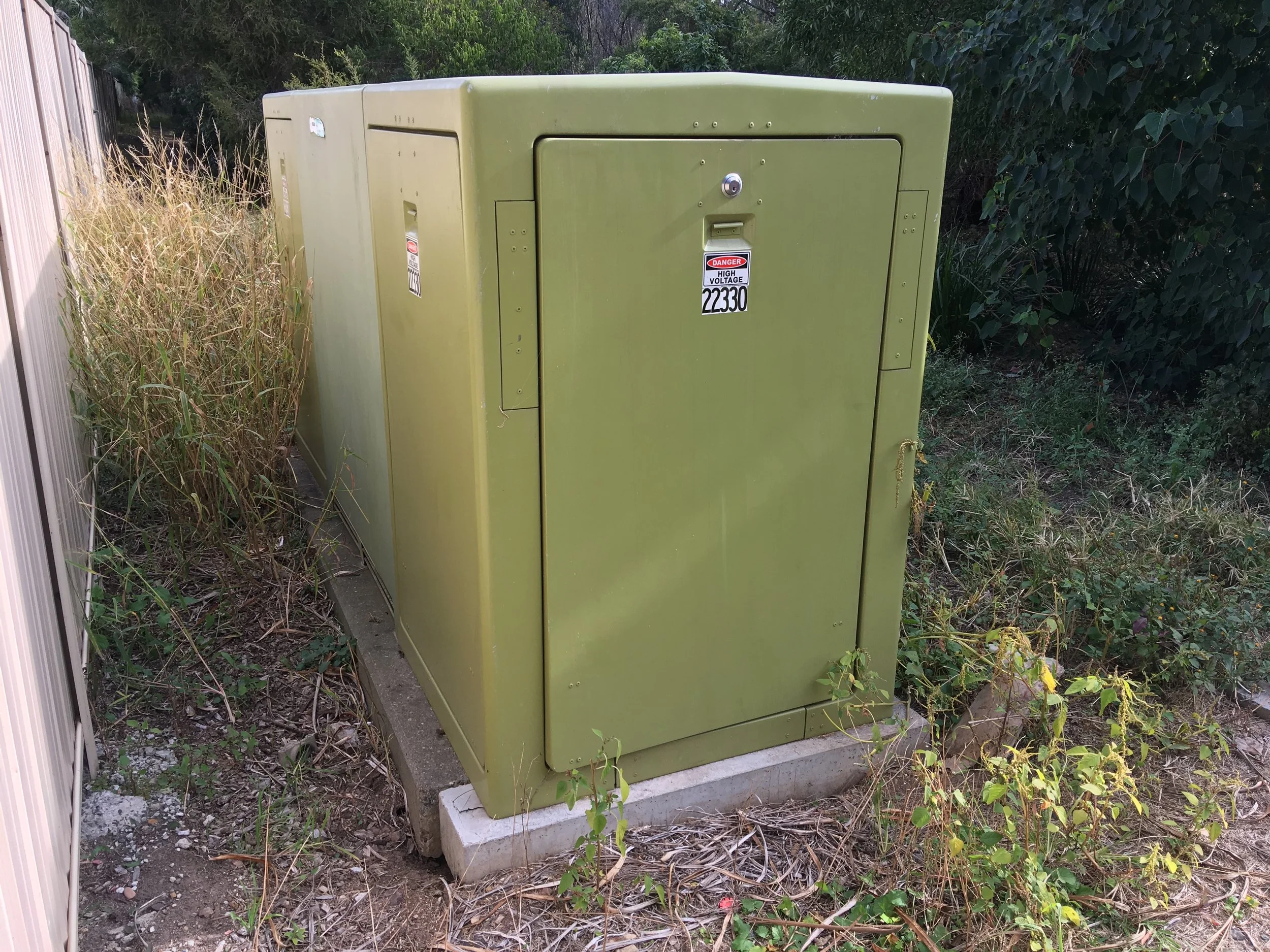

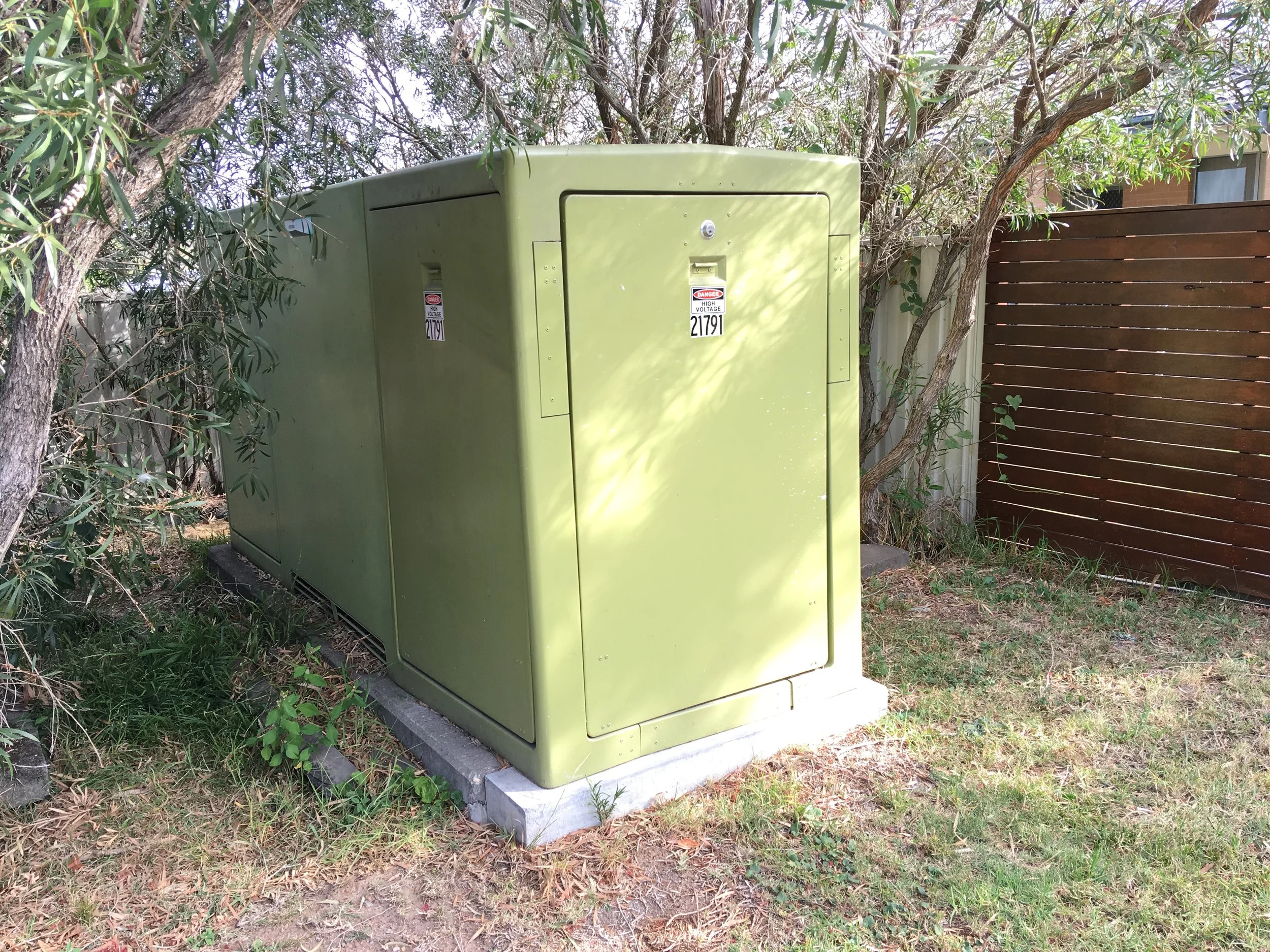

  • 540m long 11kV cable interconnecting two existing padmount substations to create additional supply for the Shell Cove Boat Harbour Precinct.

HIGHLIGHTS:

  • Upgrade of existing 11kV switchgear from legacy 3-phase Holec to newer ABB SafeLink,
  • Developed custom HV padmount cubicle constructions to accommodate the new switchgear,

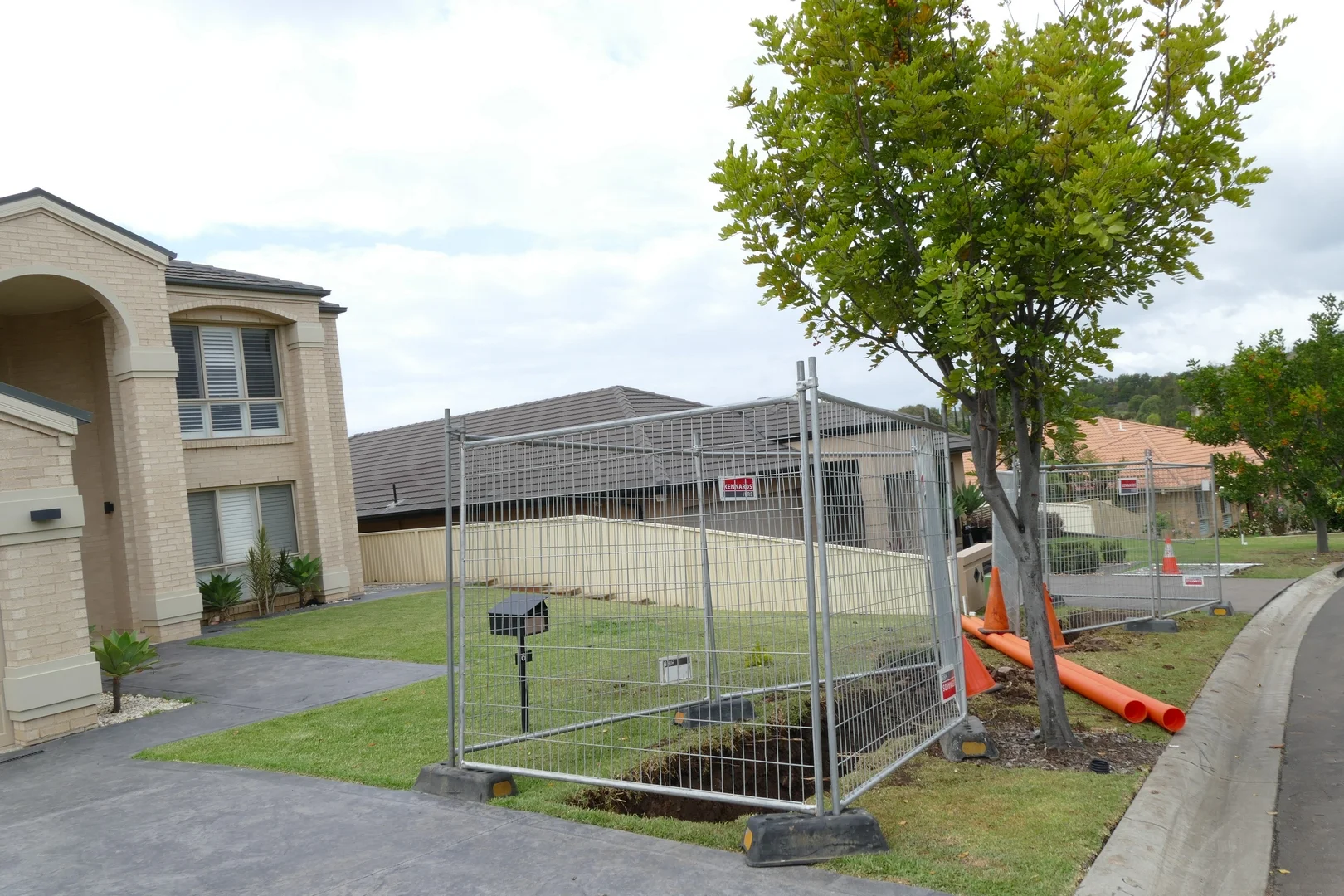

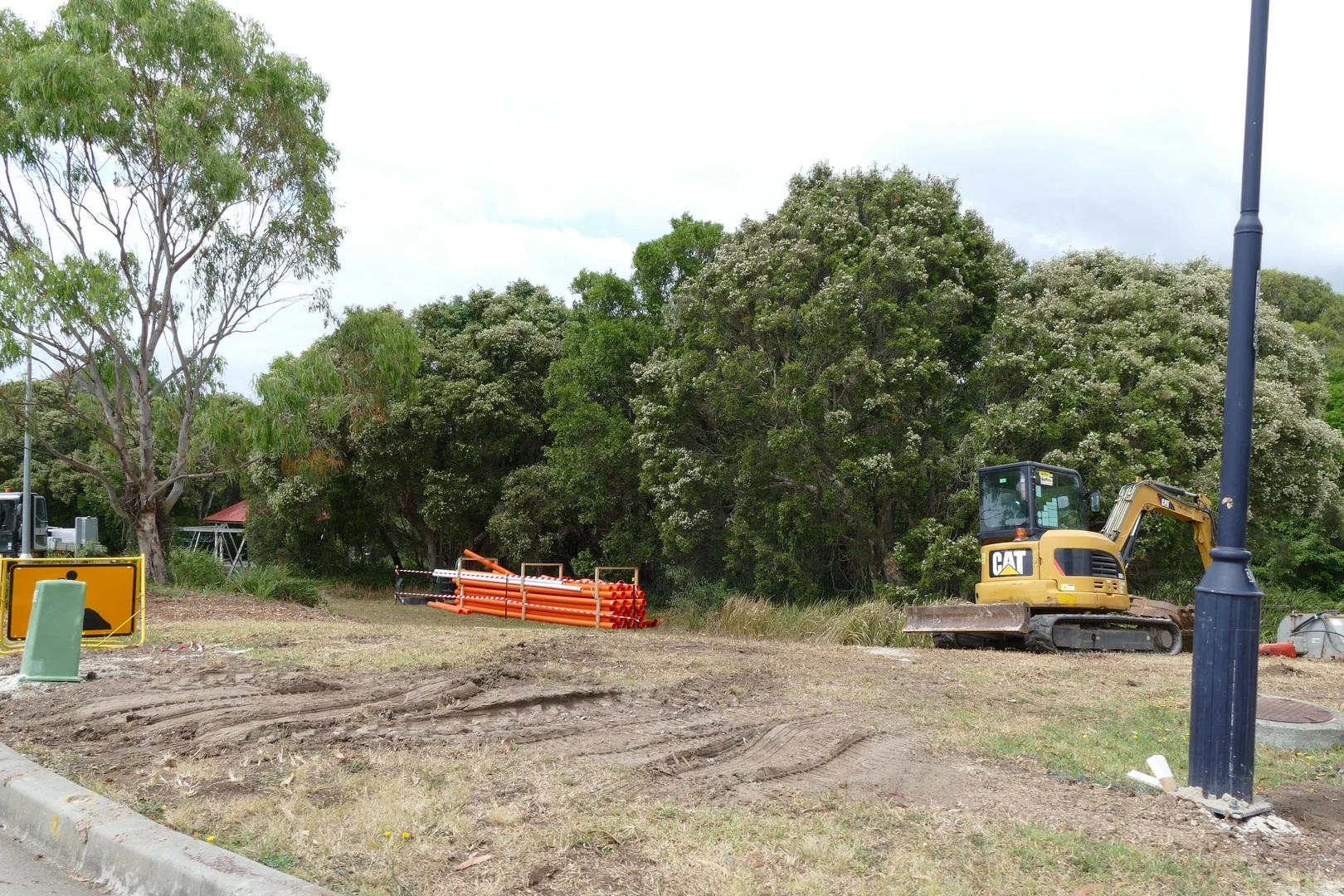

  • Underboring of existing residential driveways to minimise disturbance to residents.
